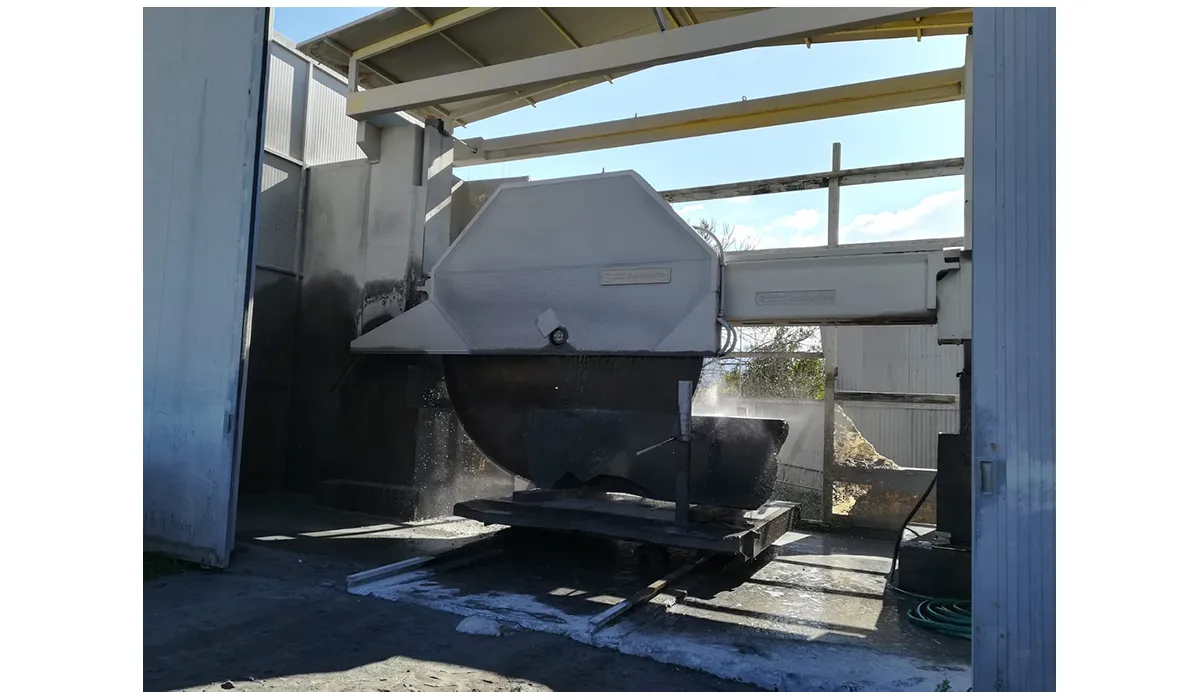

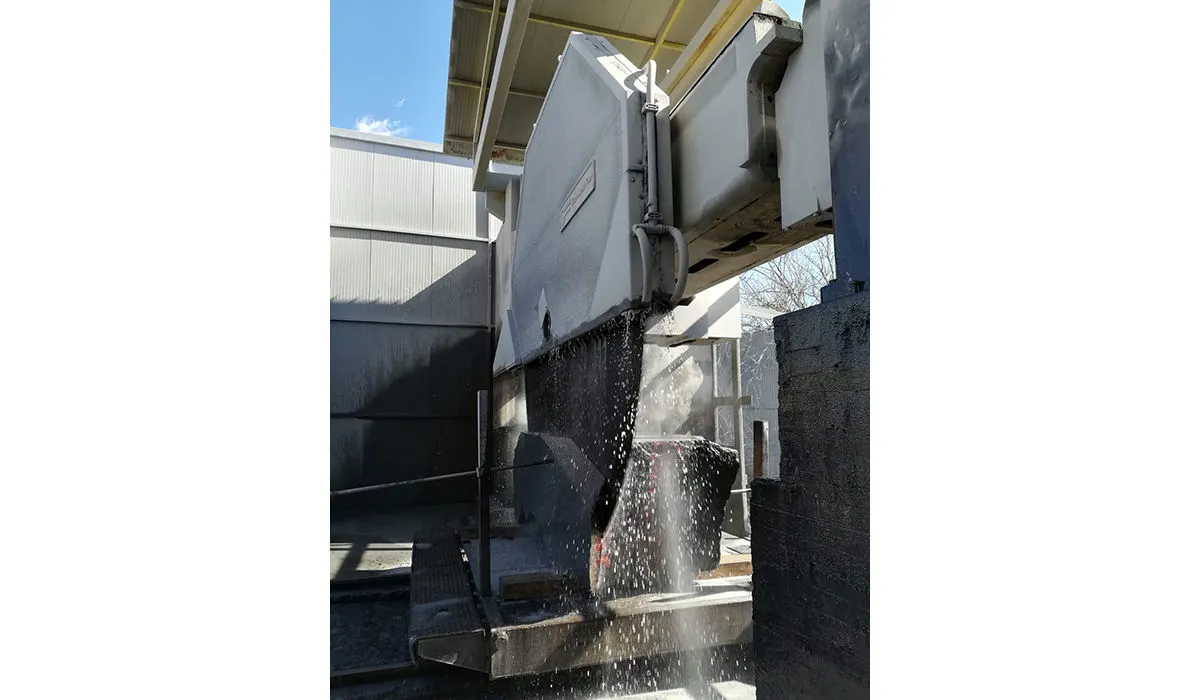

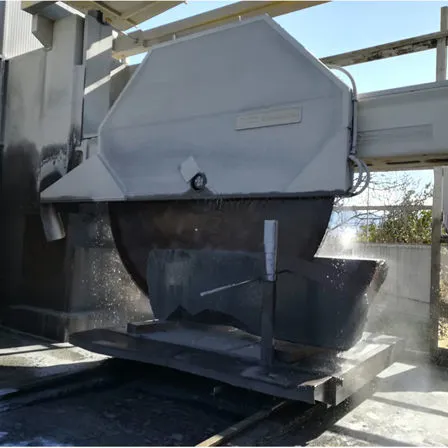

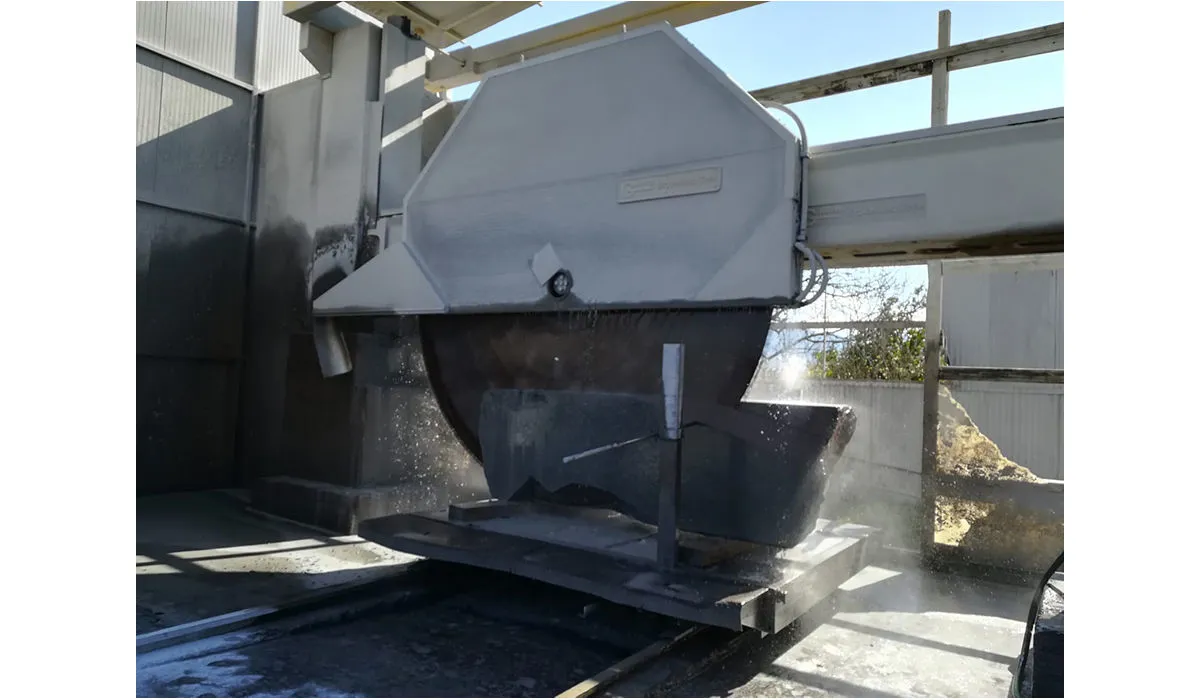

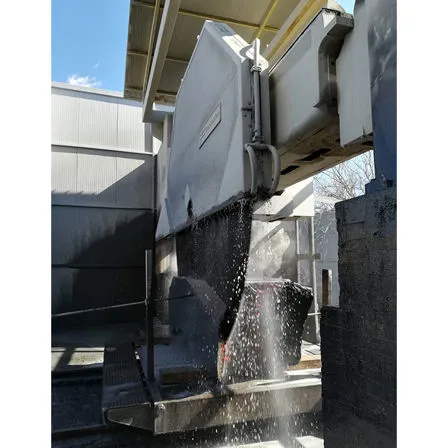

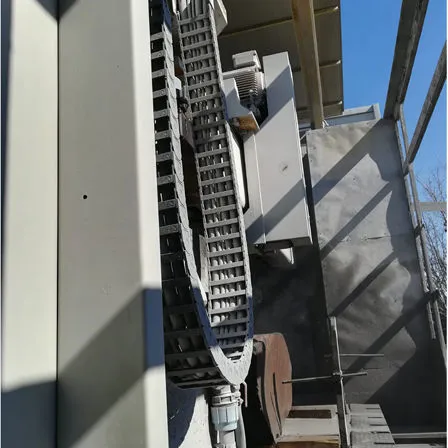

Bridge saw machine GMM Giga

To view the video, please accept all cookies by clicking at the bottom left or enable YouTube cookies in your settings.

Bridge saw machine GMM Giga

Brand: GMM
Model: GIGA 3500
Max blade diameter: mm. 3500
Optional:
Year of costruction: 2004
Conditions: Ottime
Cuttin stroke of the blade X axis : mm.4.000
Max stroke Y axis trolley: mm. 2.800
Max stroke Z axis: mm. 2.200
Size of the trolley: mm. 2.200x3.000
Max thickness of cut: mm. 1520
Power motor: Kw 37
Cooling water conpsution: 120 Lt/Min
Weight of the machine: Kg 18.000
Availability: Salvo il venduto
Energy consumption:
Voltage: V.400 Hz50
Location: Italia

N.B. The data are simply indicative
