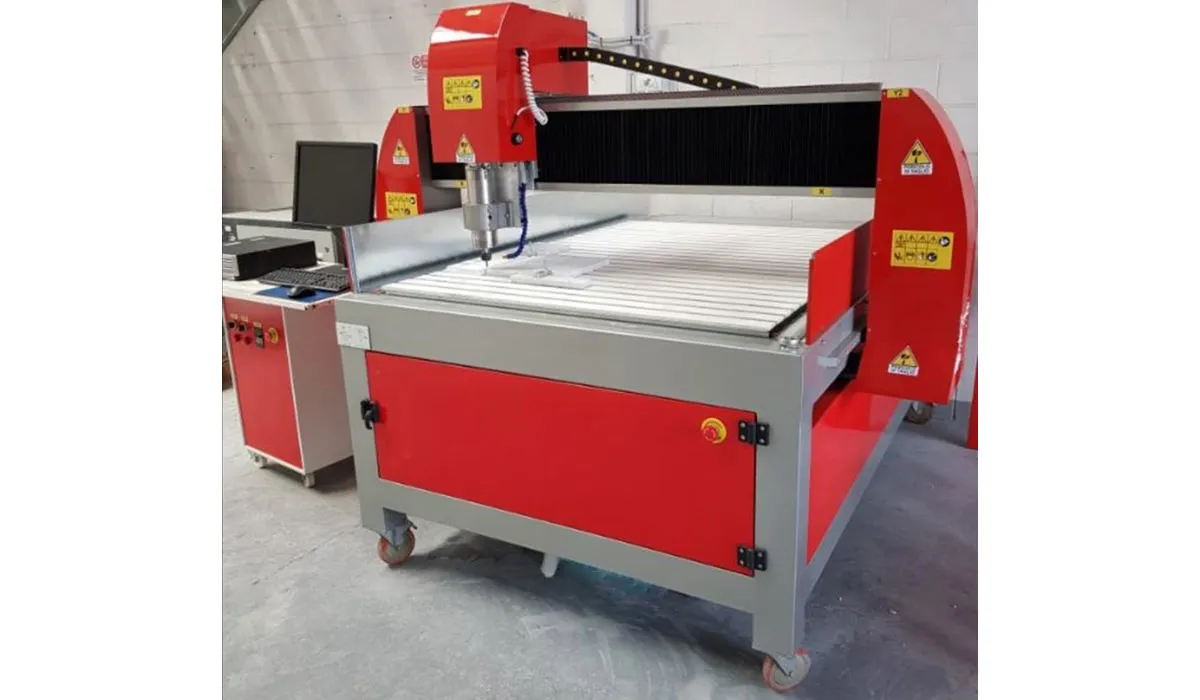

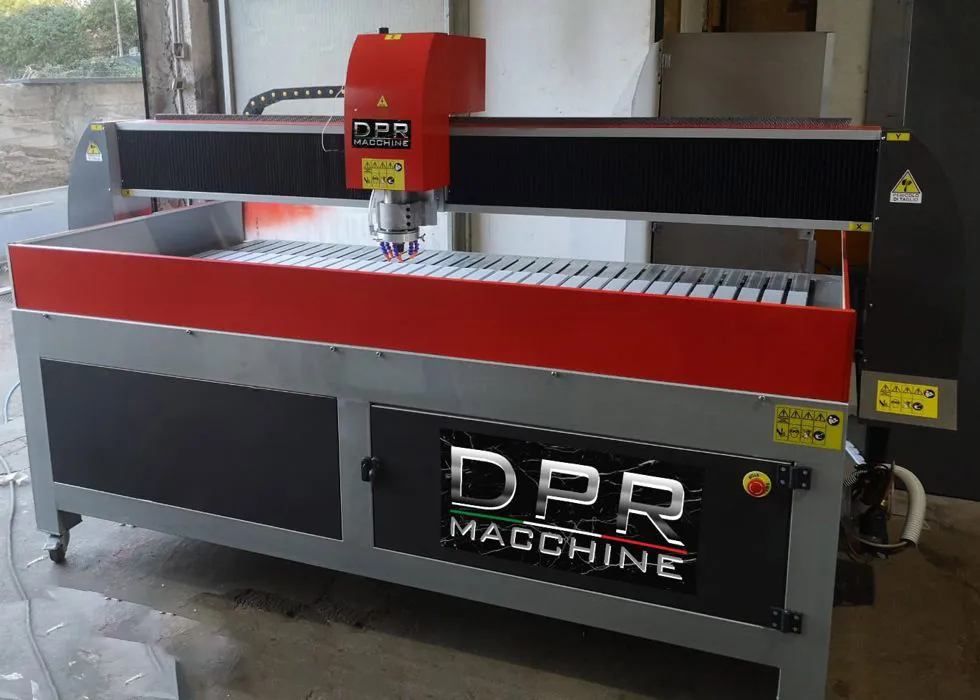

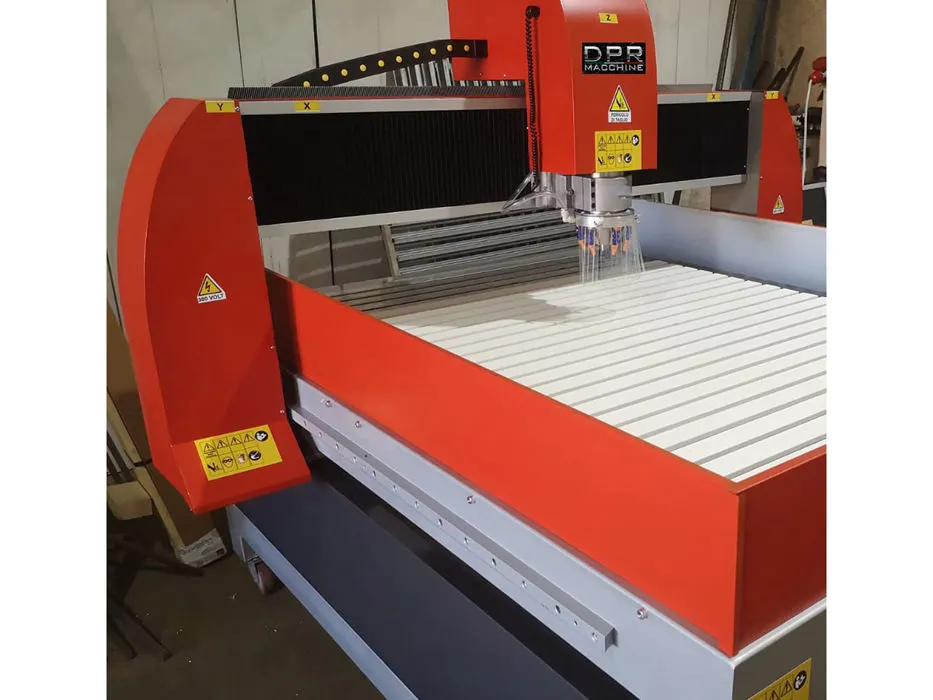

Router CNC 3 Axes interpolated model Moka

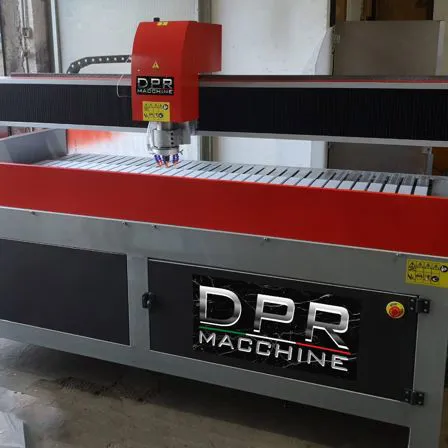

Pantografo Moka

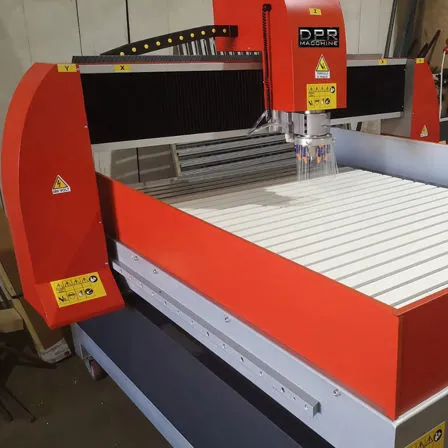

Pantografo Moka

Router CNC 3 Axes interpolated model Moka

Router CNC 3 Axes interpolated model Moka

Working dimensions: mm. 1.000x1.000-1.000x1.500-1.300x2.000-1.500x2.500( on request)
Software:MACH 3
Cad Cam:Art Cam
Industrial computer complete with keyboard and mouse
Z-axis stroke: mm. 250 (or on request)
Spindle motor power: kw 3.2(or on request) liquid cooling with collection tank and reuse pump
Spindle rotation speed:0-24.000 Rpm
Fast X-Y axis feed speed: 3,800 mm. /min.
Tool connection: E22 1 mm cylindrical connection. To 13 mm.
Set of cylindrical pliers for 1mm tools. - 13 mm.
Displacement accuracy: 0.005 mm.
Precision hardened helical tooth racks
Recirculating ball axis guides with 4 principles
Drive for X-Y-Z axes
Guide protection bellows
Series of tools for machine testing

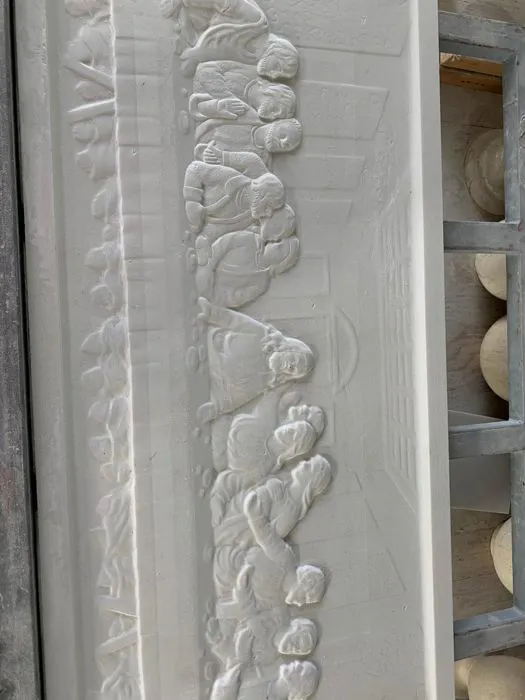

Library of sacred images included
Tool changer included
Warranty 3 years
Free telematic assistance
Voltage: V. 400 Hz 50 (or on request)
